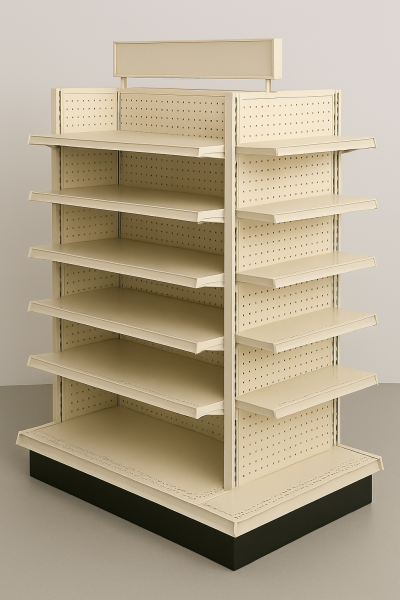

The picture above depicts a 8' double sided
gondola configured with two sections and one
end that includes: all the trim pieces such as
front kick plates, base shoe covers, and upright
covers.
The double sided sections are designed to be
placed in the center portion of the
merchandising floor and can be used to separate
the store and aisles.
We have double sided sections available in
depths as small as 12" and as deep as 30" with
heights that start at 36" up to 96". Floor
anchors are suggested and available for all
heights above 48". Check with your
contractor, city and county building codes. |
Double Sided Section
To create a Double Sided aisle as pictured in
the images on the top of this page you will use
the Double Sided Section pieces below to
configure your aisle length as the sections are
available in either 3 or 4 foot sections and
your will need an end to complete your aisle of
Double Sided Gondola.
A Double Sided Section includes 2 lower
shelves, 1 upright, 1 upright cover, 2 base
shoes, 2 hardboard backs, 2 kick-plates, 2 base
shoe cover, 1 upper spanner, 1 center spanner,
and 1 lower spanner.
|
Shelving Heights
-
36 Inches High -
42 Inches High -
48 Inches High
54 Inches High -
60 Inches High -
66 Inches High
72
Inches High -
78 Inches High -
84 Inches High
90 Inches High -
96 Inches High
Upper Shelves For Gondola Shelving
Upper Shelves available in two inch increments starting at 8 inches to 30 inches
deep and widths of a 24 inch, 30 inch, 36 inch, and a 48 inch.
|
Freestanding Wire
Binning System front Fences and Dividers allows
flexibility in merchandising lighter products.
The fences have welded on “feet” for attachment
to shelf perforations. Fronts and dividers may
be used independent of one another.
Vertical wire are
on 1" centers. Chrome plated finish.
|
|
Standard Coatings
Oyster |
Sahara
Beige |
Satin
Black |
Non Returnable Coatings
Blue Gray |
Chocolate |
Dove
Gray |
Dover White |
Fashion Gray |
True Gray |
Skyline Gray |
Snow White |
Optional Non Returnable Coatings
Bright
Orange |
Burgundy |
Hollyberry |
Hunter
Green |
Mandarian |
Neon Blue |
Yellow |
Spectrum
Blue |
Spec Green |
Spectrum
Red |
Valencia |
|
Double Sided End
A Double Sided End is used to complete a
Gondola Aisle. For example a 16' Double Sided
Aisle will consist of 4 Double Sided Sections
and 1 Double Sided End to complete the Aisle.
A Double Sided End includes 1 upright, 2 base
shoes, 2 base shoe covers, and 1 upright cover.
|
Base and Upper Shelving
Depths
-
8 Inch Upper
Only -
10 Inch Upper Only
12 Inch Upper and Base -
14 Inch Upper and Base
16 Inch Upper and Base -
18 Inch Upper and Base
20
Inch Upper and Base -
22 Inch Upper and Base
24 Inch Upper and Base -
26 Inch Upper Only
28 Inch Upper Only -
30 Inch Upper and Base

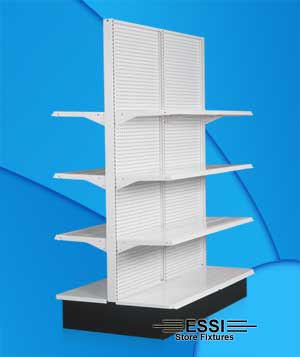

The
Gondola End Cap is
configured with
the same
components as
the double sided
and single sided
gondolas.
As it is a
single sided
section in a
double back
configuration it
can easily be
installed right
up against and
existing aisle
of double sided
Convenience
Store Gondolas.
|

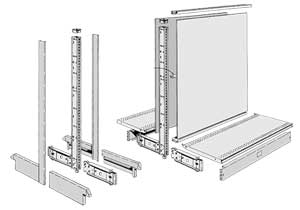

Gondola Shelving Components
Identify all the pieces used to configure a
section of Convenience Store Shelving.
From top to bottom: top spanner, backs,
center spanner, basic uptight, lower spanner,
base shelf, base shoes, base shoe cover, front
kictplate.
Not show is the splicer spanner used on
sections 78" or higher.
|
|
